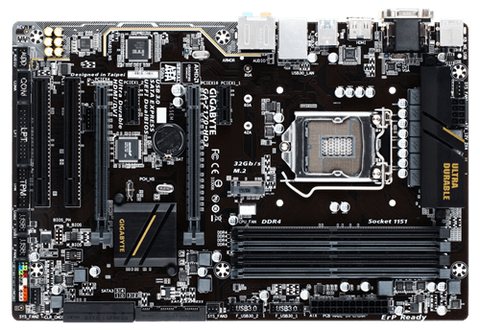

Z170 Motherboard

Z170 Motherboard



Chipset Z170
CPU Socket 1151
Memory Type DDR4
Memory Speed 3466Mhz
Maximum Memory 64GB
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slots, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Back Panel I/O Connectors 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Onboard LAN Realtek® GbE LAN chip (10/100/1000 Mbit)



Description:

Please note: The brand might defer depending on stock and availabilities. The brands we use are Gigabyte, MSI, Asus and Asrock. The connectors and characteristics of the motherboard might defer depending on the brand.
